Coal-Trol Digital™ Control Modules

There are two control modules sold for retail sale:

CM1

CM2-4



Features

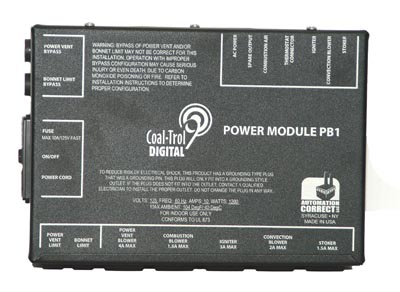

CM1
CM2-4

Heavy Duty Power Entry Module
X
Integrated Power Cord
X
Power Indicator
X
X
Integrated 10A Fuse
X
X

Stoker Motor Plug (1.5A rated)

X
X
Combustion Air Motor Plug (1.5A rated)
X
X
Convection Air Motor Plug (2A rated)
X
X

Igniter Plug & Igniter Ready

X
X
Power Vent Plug (4A rated)
X
Power Vent Limit Plug
X
Bonnet Limit Plug
X
Furnace Fan Contacts (AUXFAN)
X

Motor Indicator Lights
X
Conforms to UL 873
X
X



The CM1 is found in the Coal-Trol Digital Advanced and Advanced+ systems.

The CM2-4 is found in the Coal-Trol Digital Standard and Standard+ systems.

We do not sell either unit individually online.  If you wish to upgrade or purchase a replacement part please contact your local dealer or contact us at (315) 299-3589 or email us at sales@automationcorrect.com.
